🔋 Volvo XC60 Recharge – Battery Capacity, Charging Times, and PHEV Charging Specs

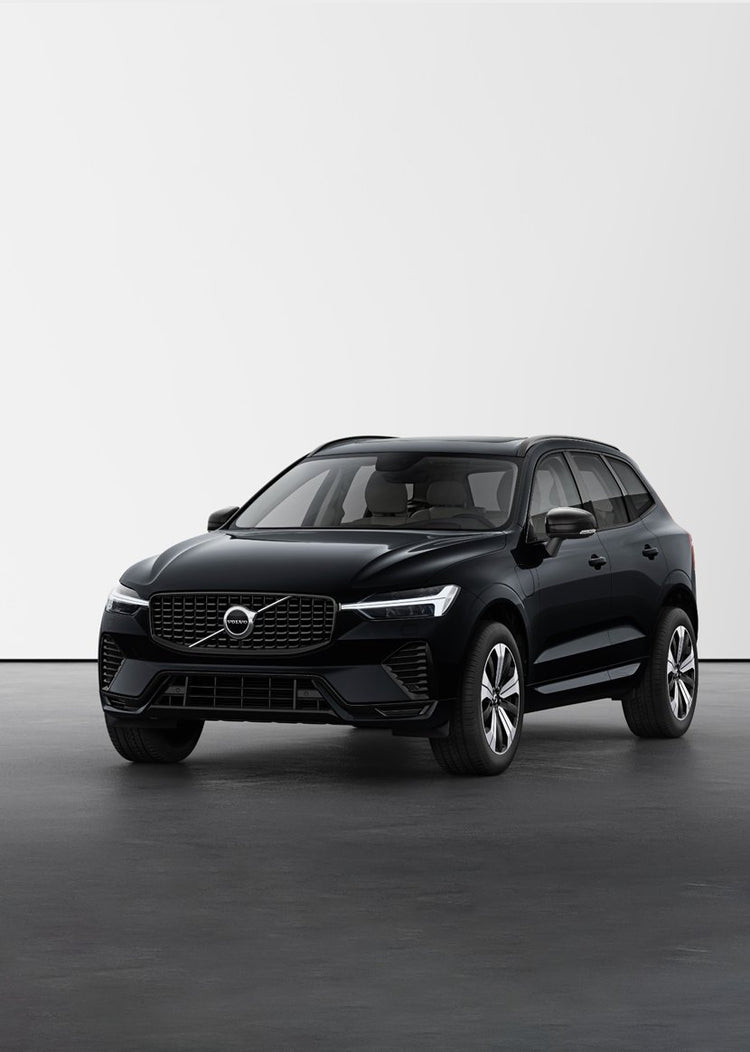

The Volvo XC60 Recharge is a luxury plug-in hybrid SUV that combines elegant Scandinavian design, advanced safety features, and an efficient hybrid drivetrain with extended all-electric driving range – ideal for everyday, emission-free travel.

🔋 Battery Capacity and Electric Range

Usable battery capacity: 18.8 kWh

Electric-only range: 77–90 km WLTP (depending on variant and conditions)

This range allows most drivers to complete their daily routes without needing to activate the petrol engine.

⚡ AC Charging (Wallbox or Portable EV Charger)

Maximum AC charging power: 6.4 kW (2-phase)

Full charging time (0 to 100%):
▪️ Around 3–5 hours (depending on the charger type and power source)

To reach the maximum AC charging speed, the XC60 Recharge must be connected to an 11 kW 3-phase wallbox (16A per phase). However, the vehicle uses only 2 of the 3 available phases, resulting in a maximum charging output of 6.4 kW. Charging is done via a standard Type 2 connector.

⚠️ No DC Fast Charging

The Volvo XC60 Recharge does not support DC fast charging – all charging is handled exclusively via AC power.

✅ Volvo XC60 Recharge Charging Summary

The Volvo XC60 Recharge charges at a maximum of 6.4 kW AC, and a full recharge of its 18.8 kWh battery takes between 3 and 5 hours. It’s an excellent option for drivers who want to use electric mode for daily driving – with the convenience of charging at home, at work, or on public AC stations.
