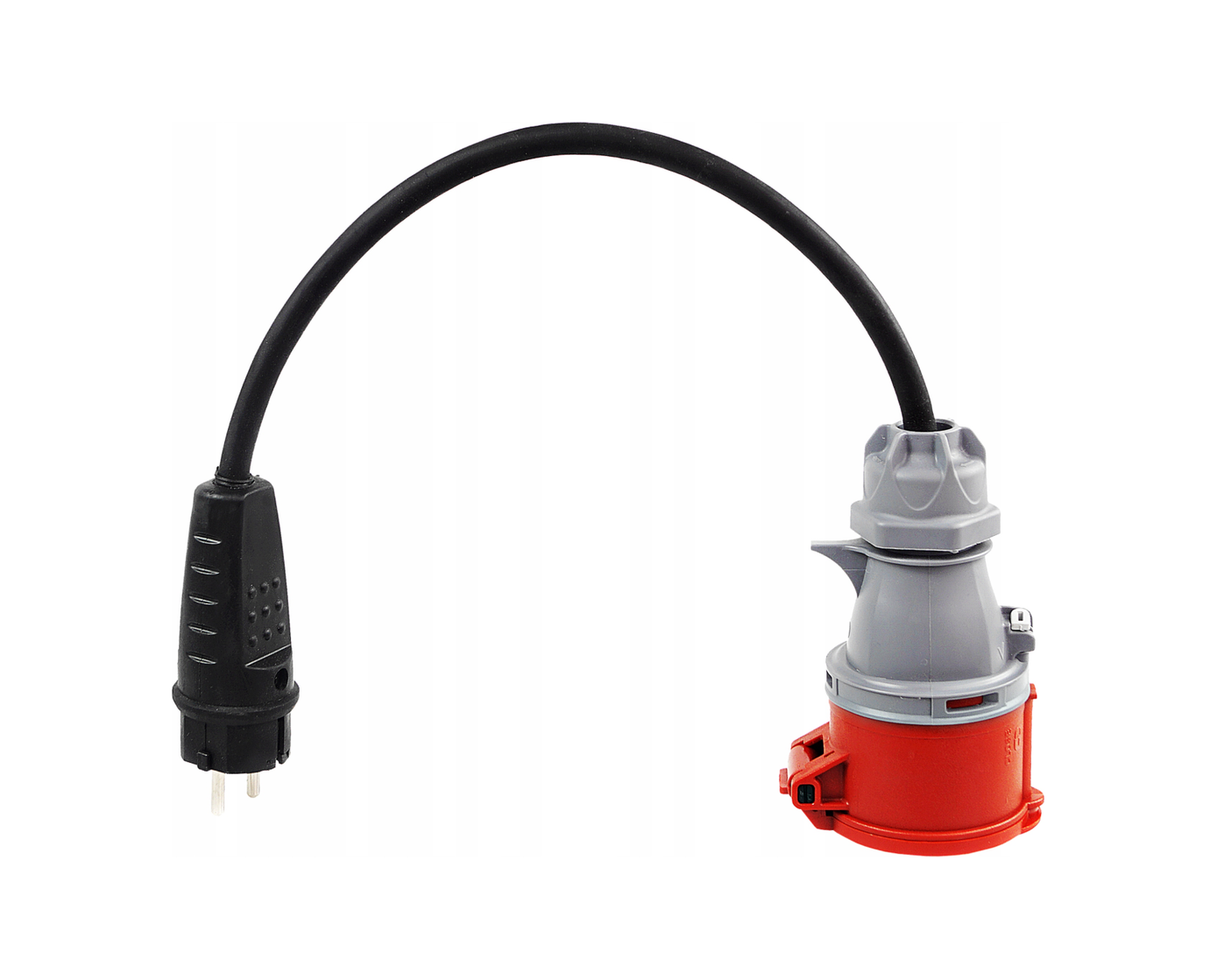

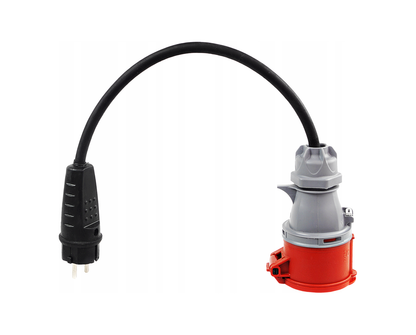

Adapter CEE32→Schuko: Connect Your Ampere Point Charger to Any Standard Outlet (230V)

The Problem: Your Charger Has Industrial Power Plug, But You Only Have Standard Outlets

You have a modern Ampere Point charger – Q74 (7.4kW), P72 (7.4kW), or Q22 (22kW). They're powerful, reliable, built for professional use.

But there's one issue: these chargers come with a industrial CEE32 power plug (the large, robust connector). Your home, office, or workshop? It has standard Schuko outlets (230V).

You have three options:

1. Call an electrician to install industrial wiring – expensive, time-consuming, permanent installation
2. Buy a different charger – waste of money
3. Use this adapter – plug your charger into any Schuko outlet, instantly, safely

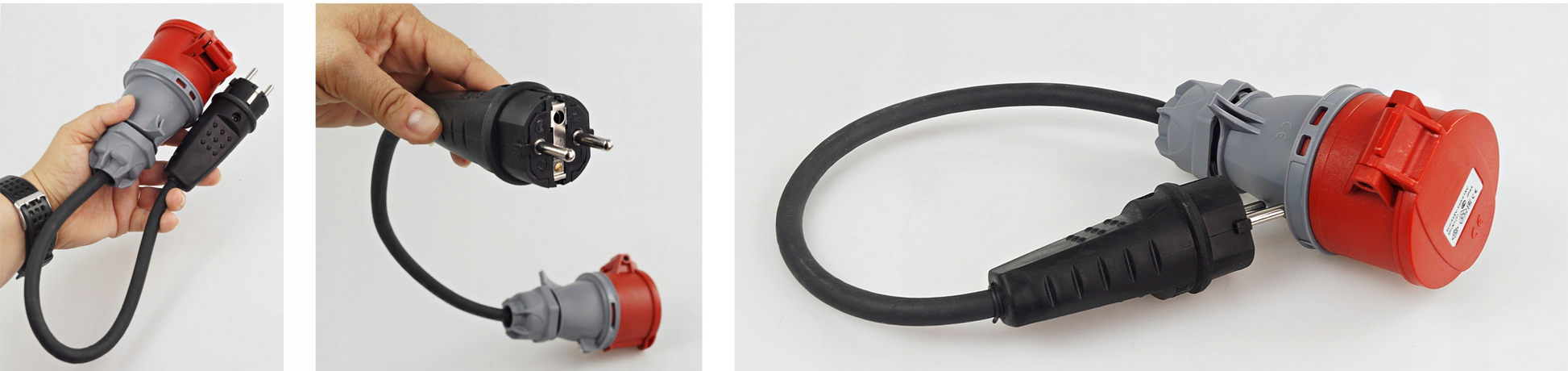

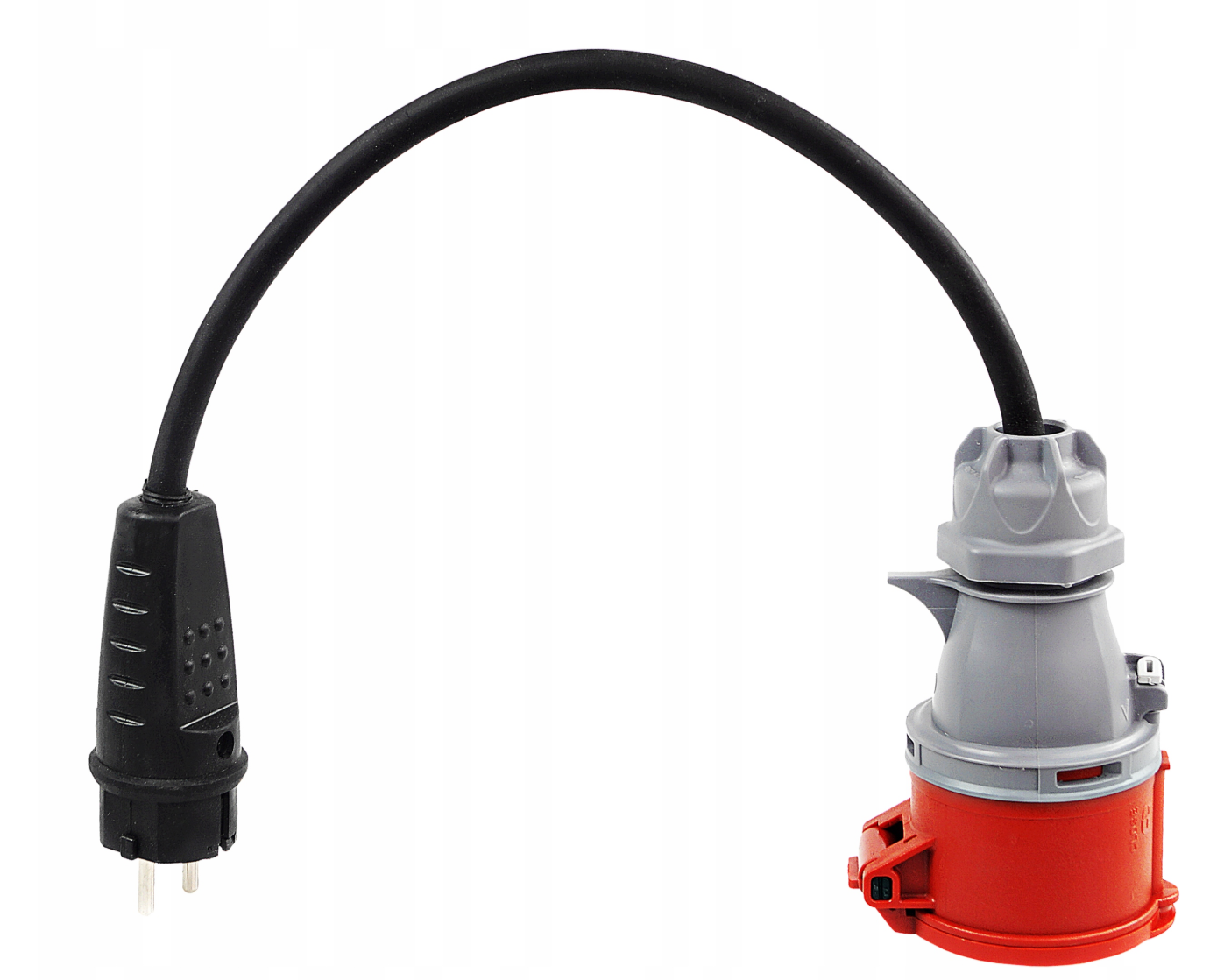

What Is This Adapter?

It's a smart transition piece that connects your Ampere Point charger (with CEE32 plug) to a standard Schuko socket (230V household outlet).

How it works:

1. Take your charger with the large CEE32 plug
2. Plug it into this adapter's receptacle
3. Plug the adapter's Schuko connector into any standard wall outlet

That's it. Your 7.4kW or 22kW charger now works from a regular socket.

Why Would You Use This?

✔️ Home charging – no industrial wiring, just use what you have
✔️ Temporary installations – event, parking lot, construction site
✔️ Flexibility – move your charger between locations easily
✔️ No renovations – no electrician, no broken walls, no delays
✔️ Professional charger, standard outlet – best of both worlds

Important Limitation: Power

Maximum power from standard Schuko: 3.7 kW (230V × 16A)

Your chargers are more powerful:

• Q74/P72: 7.4 kW
• Q22: 22 kW

This adapter limits charging to 3.7 kW maximum. Your charger will work, but at reduced power. Charging will be slower, but safe.

If you need full power, you need a proper 3-phase industrial installation (16A/32A CEE socket). For occasional use or temporary charging, this adapter is perfect.

How to Use It

1. Before first use: Check your charger's plug type (should be CEE32 5-pin)
2. Connect: Plug charger's CEE32 connector into adapter's receptacle
3. Plug in: Plug adapter's Schuko connector into any wall outlet
4. Charge: Start charging – it will default to 16A/230V (3.7 kW)
5. Done: Unplug when finished. No special handling needed.

Technical Specifications

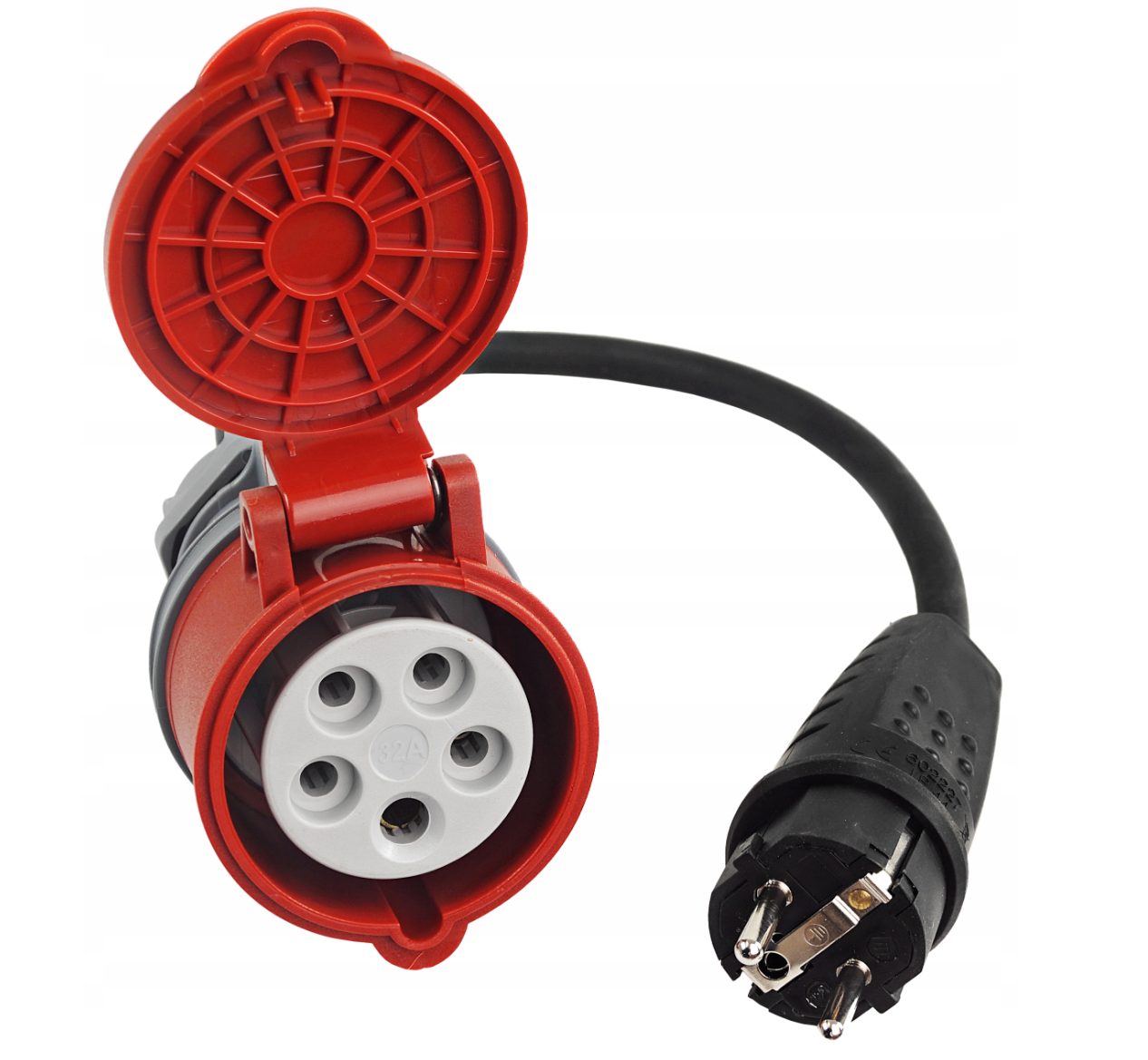

CEE32 Receptacle (Charger Side):

• Voltage: 400V 3-phase (accepts charger plug)
• Type: CEE32A
• Pins: 5P
• Protection: IP44

Internal Cable:

• Type: H05RR-F (mobile industrial cable)
• Conductors: 3×2.5 mm²
• Length: ~50 cm
• Maximum current: 16A (safety-rated)

Schuko Plug (Wall Side):

• Voltage: 230V single-phase
• Type: Schuko 2P+E
• Maximum current: 16A
• Protection: IP44

Total Power Capacity: 3.7 kW

Compatible Ampere Point Chargers

• Q74 (7.4kW) – will charge at 3.7kW with this adapter
• P72 (7.4kW) – will charge at 3.7kW with this adapter
• Q22 (22kW) – will charge at 3.7kW with this adapter
• Any other charger with CEE32 plug

Safety

• Certified – meets industrial safety standards
• Grounded – proper 5-pin connection with ground protection
• Protected – IP44 rated, safe against dust and moisture
• Current-limited – cable is rated for exactly this amperage, no risk of overheating

This is proper equipment, not a workaround.

What You Cannot Do

• Do not expect full charging power – maximum is 3.7 kW
• Do not use with damaged cables or outlets
• Do not leave plugged in unattended during charging (standard safety)
• Do not use with extension cords over 10 meters (voltage drop risk)

Better Alternative?

If you need full power from your charger, ask your electrician about installing a 3-phase 16A/32A CEE socket (Type C per EN 17186). Cost: typically €200-500. That way you'll get your charger's full 7.4 kW or 22 kW.

This adapter is for temporary, flexible, or occasional use.

Questions?

📧 hello@amperepoint.com – we'll help you decide if this adapter is right for your situation, or if a permanent installation makes more sense.
